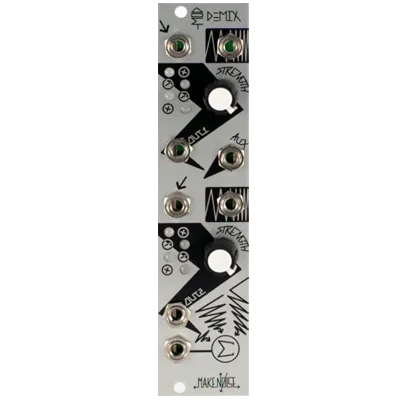

The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently to process audio or control signals by means ring modulation, multiplication, voltage controlled polarization/ amplification/ mixing and more.
- Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA
- Attenuator at the Carrier/ Control INput allows for setting the strength or level of the modulating signal
- Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
- AUXiliary IN allows for the stacking of multiple modDemix units to create larger mixes
- Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod made
- MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module
- Pairs well with MATHS and Optomix
Specifications
Width:- 6hp
- 24mm
- 30mA@ 12V
- 30mA @ -12V
